CDL(50Hz)

QDL立式多级泵离心泵CDL离心泵变频加压泵QDL立式多级泵离心泵CDL离心泵变频加压泵CDLF QDLF主要用途供水水厂过滤与输送、水厂分区送水、主管增压、高层建筑增压。工业增压流程水系统、清洗系统、高压冲洗系统、消防

产品信息

产地中国 » 上海

结算币种人民币

所属分类 CDL(50Hz)

上架时间 2022-09-28

立即咨询

电话咨询收藏产品

正品保障

快速交付

专业支持

产品介绍

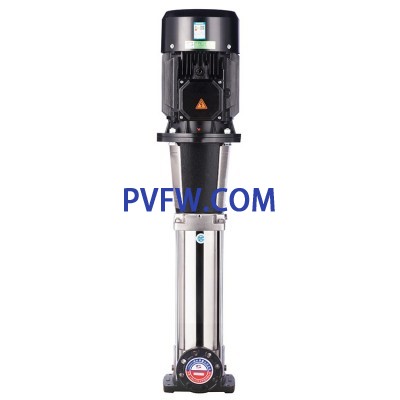

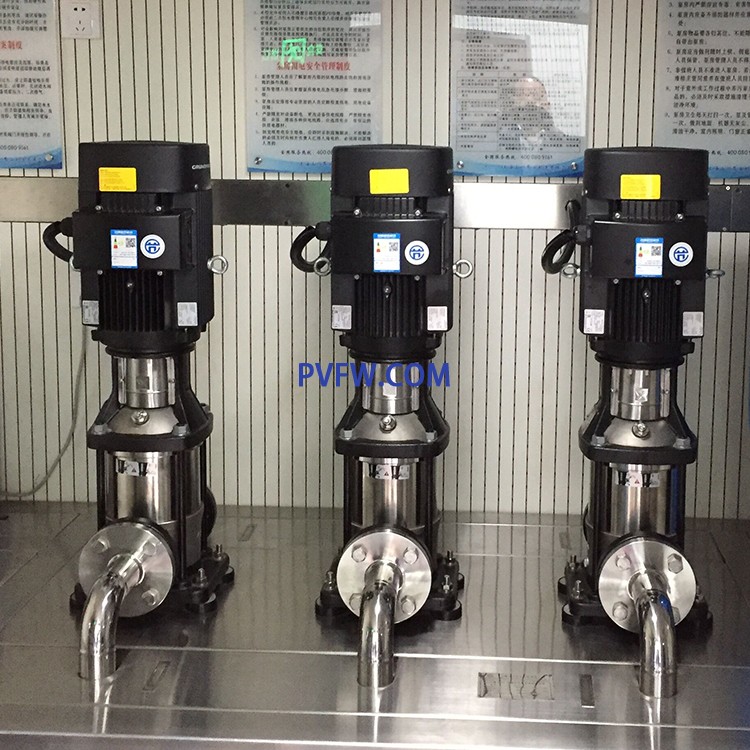

QDL立式多级泵离心泵CDL离心泵变频加压泵

QDL立式多级泵离心泵CDL离心泵变频加压泵 CDLF QDLF

主要用途

供水

水厂过滤与输送、水厂分区送水、主管增压、高层建筑增压。

工业增压

流程水系统、清洗系统、高压冲洗系统、消防系统。

工业液体

冷却和空调系统、锅炉给水和冷凝系统、机床配套、酸和碱。

水处理

超滤系统、反渗透系统、蒸馏系统、分离器、游泳池。

灌溉

农田灌溉、喷灌、滴灌。

多级离心泵可以用在成套设备，或者单独使用。

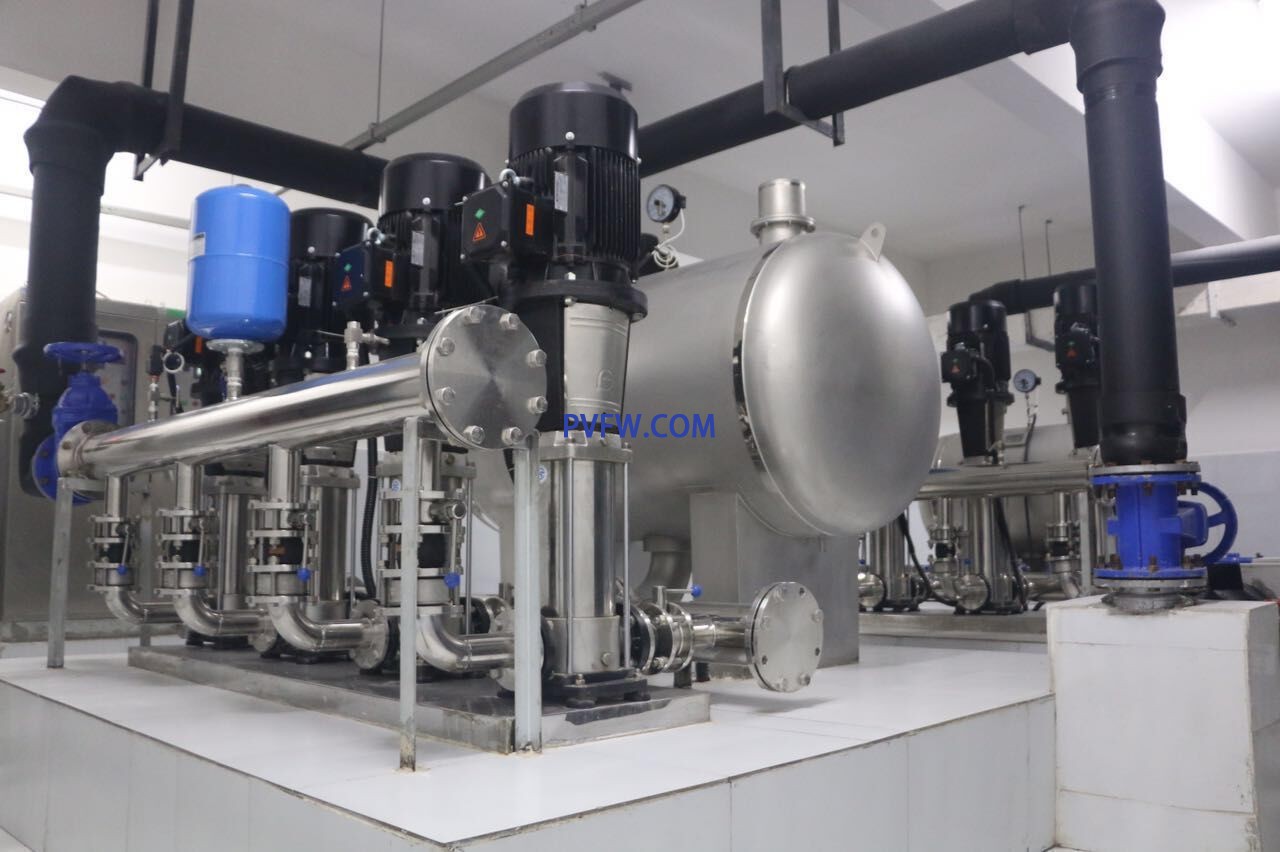

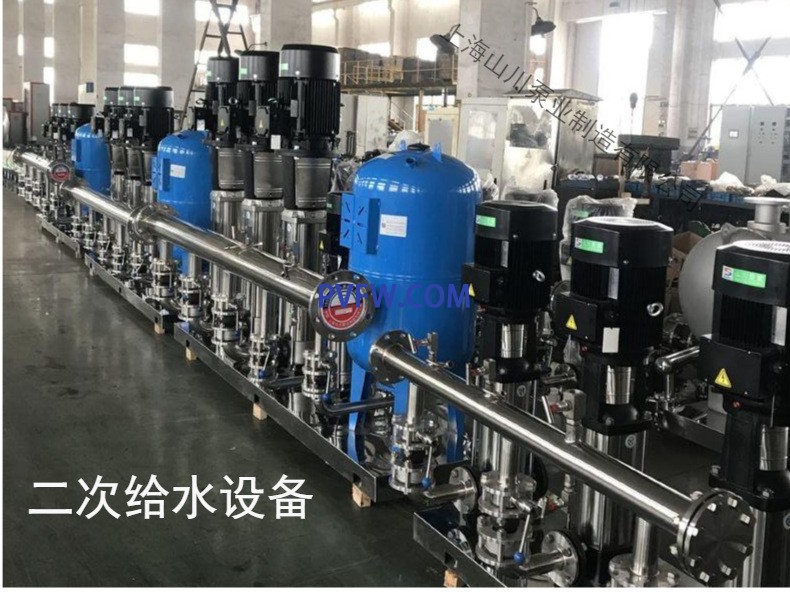

多级离心泵成套设备输送清水工业增压锅炉给水冷却水泵

详细规格

产品选型（）

NO.	型号	流量 (m³/h)	H (m)	N (r/min)	P (kw)	η (%)
1	CDL2-7-50HZ	1	11.5	2900	0.37	37
2	CDL2-8-50HZ	1	17	2900	0.37	37
3	CDL2-9-50HZ	1	22.5	2900	0.37	37
4	CDL2-10-50HZ	1	28	2900	0.37	37
5	CDL2-11-50HZ	1	33.5	2900	0.37	37
6	CDL2-12-50HZ	1	39	2900	0.37	37
7	CDL2-13-50HZ	1	45	2900	0.55	37
8	CDL2-14-50HZ	1	51	2900	0.55	37
9	CDL2-15-50HZ	1	57	2900	0.55	37
10	CDL2-16-50HZ	1	61	2900	0.55	37
11	CDL2-17-50HZ	1	67	2900	0.75	37
12	CDL2-18-50HZ	1	73	2900	0.75	37
13	CDL2-19-50HZ	1	78	2900	0.75	37
14	CDL2-20-50HZ	1	84	2900	0.75	37
15	CDL2-21-50HZ	1	89	2900	1.1	37
16	CDL2-22-50HZ	1	95	2900	1.1	37
17	CDL2-23-50HZ	1	100	2900	1.1	37
18	CDL2-24-50HZ	1	106	2900	1.1	37
19	CDL2-25-50HZ	1	111	2900	1.1	37
20	CDL2-26-50HZ	1	117	2900	1.1	37
21	CDL3-2-50HZ	1	122	2900	1.1	37
22	CDL3-3-50HZ	1	128	2900	1.1	37
23	CDL3-4-50HZ	1	133	2900	1.5	37
24	CDL3-5-50HZ	1	139	2900	1.5	37
25	CDL3-6-50HZ	1	144	2900	1.5	37
26	CDL3-7-50HZ	1	150	2900	1.5	37
27	CDL3-8-50HZ	1	155	2900	1.5	37
28	CDL3-9-50HZ	1	160	2900	1.5	37
29	CDL3-10-50HZ	1	166	2900	1.5	37
30	CDL3-11-50HZ	1	172	2900	2.2	37
31	CDL3-12-50HZ	1	178	2900	2.2	37
32	CDL3-13-50HZ	1	183	2900	2.2	37
33	CDL3-14-50HZ	1	189	2900	2.2	37
34	CDL3-15-50HZ	1	194	2900	2.2	37
35	CDL3-16-50HZ	1	200	2900	2.2	37
36	CDL3-17-50HZ	2	15	2900	0.37	42.5
37	CDL3-18-50HZ	2	22	2900	0.37	42.5
38	CDL3-19-50HZ	2	30	2900	0.55	42.5
39	CDL3-20-50HZ	2	37	2900	0.55	42.5
40	CDL3-21-50HZ	2	45	2900	0.75	42.5
41	CDL3-22-50HZ	2	52	2900	0.75	42.5
42	CDL3-23-50HZ	2	59	2900	1.1	42.5
43	CDL3-24-50HZ	2	67	2900	1.1	42.5
44	CDL3-25-50HZ	2	74	2900	1.1	42.5
45	CDL3-26-50HZ	2	82	2900	1.1	42.5
46	CDL3-27-50HZ	2	90	2900	1.5	42.5
47	CDL3-28-50HZ	2	98	2900	1.5	42.5
48	CDL3-29-50HZ	2	105	2900	1.5	42.5
49	CDL3-30-50HZ	2	112	2900	1.5	42.5
50	CDL3-31-50HZ	2	120	2900	2.2	42.5
51	CDL3-32-50HZ	2	128	2900	2.2	42.5
52	CDL3-33-50HZ	2	136	2900	2.2	42.5
53	CDL3-34-50HZ	2	143	2900	2.2	42.5
54	CDL3-35-50HZ	2	150	2900	2.2	42.5
55	CDL3-36-50HZ	2	157	2900	2.2	42.5
56	CDL4-2-50HZ	2	165	2900	2.2	42.5
57	CDL4-3-50HZ	2	173	2900	3	42.5
58	CDL4-4-50HZ	2	181	2900	3	42.5
59	CDL4-5-50HZ	2	189	2900	3	42.5
60	CDL4-6-50HZ	2	198	2900	3	42.5
61	CDL4-7-50HZ	3	9	2900	0.37	52
62	CDL4-8-50HZ	3	14	2900	0.37	52
63	CDL4-9-50HZ	3	19	2900	0.37	52
64	CDL4-10-50HZ	3	23	2900	0.37	52
65	CDL4-11-50HZ	3	28	2900	0.55	52
66	CDL4-12-50HZ	3	32	2900	0.55	52
67	CDL4-13-50HZ	3	37	2900	0.75	52
68	CDL4-14-50HZ	3	42	2900	0.75	52
69	CDL4-15-50HZ	3	47	2900	0.75	52
70	CDL4-16-50HZ	3	51	2900	1.1	52
71	CDL4-17-50HZ	3	55	2900	1.1	52
72	CDL4-18-50HZ	3	60	2900	1.1	52
73	CDL4-19-50HZ	3	64	2900	1.1	52
74	CDL4-20-50HZ	3	69	2900	1.1	52
75	CDL4-21-50HZ	3	74	2900	1.5	52
76	CDL4-22-50HZ	3	79	2900	1.5	52
77	CDL5-2-50HZ	3	83	2900	1.5	52
78	CDL5-3-50HZ	3	88	2900	1.5	52
79	CDL5-4-50HZ	3	93	2900	2.2	52
80	CDL5-5-50HZ	3	98	2900	2.2	52
81	CDL5-6-50HZ	3	102	2900	2.2	52
82	CDL5-7-50HZ	3	107	2900	2.2	52
83	CDL5-8-50HZ	3	111	2900	2.2	52
84	CDL5-9-50HZ	3	116	2900	2.2	52
85	CDL5-10-50HZ	3	120	2900	2.2	52
86	CDL5-11-50HZ	3	124	2900	2.2	52
87	CDL5-12-50HZ	3	128	2900	2.2	52
88	CDL5-13-50HZ	3	133	2900	2.2	52
89	CDL5-14-50HZ	3	137	2900	3	52
90	CDL5-15-50HZ	3	142	2900	3	52
91	CDL5-16-50HZ	3	146	2900	3	52
92	CDL5-18-50HZ	3	151	2900	3	52
93	CDL5-20-50HZ	3	157	2900	3	52
94	CDL5-22-50HZ	3	163	2900	3	52
95	CDL5-24-50HZ	3	168	2900	3	52
96	CDL5-26-50HZ	4	15	2900	0.37	53
97	CDL5-29-50HZ	4	24	2900	0.55	53
98	CDL5-32-50HZ	4	32	2900	0.75	53
99	CDL5-36-50HZ	4	40	2900	1.1	53
100	CDL8-2/1-50HZ	4	48	2900	1.1	53
101	CDL8-2-50HZ	4	56	2900	1.5	53
102	CDL8-3-50HZ	4	64	2900	1.5	53
103	CDL8-4-50HZ	4	72	2900	2.2	53
104	CDL8-5-50HZ	4	81	2900	2.2	53
105	CDL8-6-50HZ	4	88	2900	2.2	53
106	CDL8-7-50HZ	4	95	2900	2.2	53
107	CDL8-8-50HZ	4	103	2900	3	53
108	CDL8-9-50HZ	4	112	2900	3	53
109	CDL8-10-50HZ	4	120	2900	3	53
110	CDL8-11-50HZ	4	129	2900	3	53
111	CDL8-12-50HZ	4	137	2900	4	53
112	CDL8-13-50HZ	4	145	2900	4	53
113	CDL8-14-50HZ	4	153	2900	4	53
114	CDL8-15-50HZ	4	161	2900	4	53
115	CDL8-16-50HZ	4	169	2900	4	53
116	CDL8-17-50HZ	4	178	2900	4	53
117	CDL8-18-50HZ	5	10	2900	0.37	62
118	CDL8-19-50HZ	5	15	2900	0.55	62
119	CDL8-20-50HZ	5	20	2900	0.55	62
120	CDL10-1-50HZ	5	26	2900	0.75	62
121	CDL10-2-50HZ	5	32	2900	1.1	62
122	CDL10-3-50HZ	5	37	2900	1.1	62
123	CDL10-4-50HZ	5	43	2900	1.1	62
124	CDL10-5-50HZ	5	48	2900	1.5	62
125	CDL10-6-50HZ	5	54	2900	1.5	62
126	CDL10-7-50HZ	5	59	2900	2.2	62
127	CDL10-8-50HZ	5	65	2900	2.2	62
128	CDL10-9-50HZ	5	70	2900	2.2	62
129	CDL10-10-50HZ	5	75	2900	2.2	62
130	CDL10-11-50HZ	5	81	2900	2.2	62
131	CDL10-12-50HZ	5	87	2900	2.2	62
132	CDL10-13-50HZ	5	100	2900	3	62
133	CDL10-14-50HZ	5	112	2900	3	62
134	CDL10-15-50HZ	5	123	2900	4	62
135	CDL10-16-50HZ	5	134	2900	4	62
136	CDL10-17-50HZ	5	146	2900	4	62
137	CDL10-18-50HZ	5	164	2900	4	62
138	CDL10-19-50HZ	5	181	2900	5.5	62
139	CDL10-20-50HZ	5	205	2900	5.5	62
140	CDL10-21-50HZ	8	9	2900	0.75	58.5
141	CDL10-22-50HZ	8	18	2900	0.75	58.5
142	CDL12-2-50HZ	8	27	2900	1.1	58.5
143	CDL12-3-50HZ	8	36	2900	1.5	58.5
144	CDL12-4-50HZ	8	45	2900	2.2	58.5
145	CDL12-5-50HZ	8	54	2900	2.2	58.5
146	CDL12-6-50HZ	8	63	2900	3	58.5
147	CDL12-7-50HZ	8	73	2900	3	58.5
148	CDL12-8-50HZ	8	82	2900	4	58.5
149	CDL12-9-50HZ	8	92	2900	4	58.5
150	CDL12-10-50HZ	8	101	2900	4	58.5
151	CDL12-11-50HZ	8	111	2900	4	58.5
152	CDL12-12-50HZ	8	120	2900	5.5	58.5
153	CDL12-13-50HZ	8	130	2900	5.5	58.5
154	CDL12-14-50HZ	8	139	2900	5.5	58.5
155	CDL12-15-50HZ	8	148	2900	5.5	58.5
156	CDL12-16-50HZ	8	157	2900	7.5	58.5
157	CDL12-17-50HZ	8	167	2900	7.5	58.5
158	CDL12-18-50HZ	8	176	2900	7.5	58.5
159	CDL15-1-50HZ	8	186	2900	7.5	58.5
160	CDL15-2-50HZ	10	7	2900	0.75	67
161	CDL15-3-50HZ	10	15	2900	0.75	67
162	CDL15-4-50HZ	10	23	2900	1.1	67
163	CDL15-5-50HZ	10	31	2900	1.5	67
164	CDL15-6-50HZ	10	39	2900	2.2	67
165	CDL15-7-50HZ	10	48	2900	2.2	67
166	CDL15-8-50HZ	10	56	2900	3	67
167	CDL15-9-50HZ	10	64	2900	3	67
168	CDL15-10-50HZ	10	72	2900	3	67
169	CDL15-11-50HZ	10	80	2900	4	67
170	CDL15-12-50HZ	10	88	2900	4	67
171	CDL15-13-50HZ	10	96	2900	4	67
172	CDL15-14-50HZ	10	104	2900	5.5	67
173	CDL15-15-50HZ	10	113	2900	5.5	67
174	CDL15-16-50HZ	10	121	2900	5.5	67
175	CDL15-17-50HZ	10	129	2900	5.5	67
176	CDL20-1-50HZ	10	137	2900	7.5	67
177	CDL20-2-50HZ	10	145	2900	7.5	67
178	CDL20-3-50HZ	10	153	2900	7.5	67
179	CDL20-4-50HZ	10	162	2900	7.5	67
180	CDL20-5-50HZ	10	170	2900	7.5	67
181	CDL20-6-50HZ	10	178	2900	7.5	67
182	CDL20-7-50HZ	12	20	2900	1.5	61.6
183	CDL20-8-50HZ	12	30	2900	2.2	61.6
184	CDL20-9-50HZ	12	40	2900	3	61.6
185	CDL20-10-50HZ	12	50	2900	3	61.6
186	CDL20-11-50HZ	12	60	2900	4	61.6
187	CDL20-12-50HZ	12	70	2900	5.5	61.6
188	CDL20-13-50HZ	12	80	2900	5.5	61.6
189	CDL20-14-50HZ	12	91	2900	5.5	61.6
190	CDL20-15-50HZ	12	101	2900	7.5	61.6
191	CDL20-16-50HZ	12	111	2900	7.5	61.6
192	CDL20-17-50HZ	12	121	2900	7.5	61.6
193	CDL32-10-1-50HZ	12	131	2900	11	61.6
194	CDL32-10-50HZ	12	141	2900	11	61.6
195	CDL32-20-2-50HZ	12	151	2900	11	61.6
196	CDL32-20-50HZ	12	162	2900	11	61.6
197	CDL32-30-2-50HZ	12	172	2900	11	61.6
198	CDL32-30-50HZ	12	183	2900	11	61.6
199	CDL32-40-2-50HZ	15	10	2900	1.1	68
200	CDL32-40-50HZ	15	22.5	2900	2.2	68
201	CDL32-50-2-50HZ	15	34	2900	3	68
202	CDL32-50-50HZ	15	45	2900	4	68
203	CDL32-60-2-50HZ	15	57	2900	4	68
204	CDL32-60-50HZ	15	69	2900	5.5	68
205	CDL32-70-2-50HZ	15	81	2900	5.5	68
206	CDL32-70-50HZ	15	93	2900	7.5	68
207	CDL32-80-2-50HZ	15	106	2900	7.5	68
208	CDL32-80-50HZ	15	118	2900	11	68
209	CDL32-90-2-50HZ	15	130	2900	11	68
210	CDL32-90-50HZ	15	142	2900	11	68
211	CDL32-100-2-50HZ	15	154	2900	11	68
212	CDL32-100-50HZ	15	165	2900	11	68
213	CDL32-110-2-50HZ	15	178	2900	15	68
214	CDL32-110-50HZ	15	189	2900	15	68
215	CDL32-120-2-50HZ	15	201	2900	15	68
216	CDL32-120-50HZ	20	10	2900	1.1	65.4
217	CDL32-130-2-50HZ	20	23	2900	2.2	65.4
218	CDL32-130-50HZ	20	35	2900	4	65.4
219	CDL32-140-2-50HZ	20	47	2900	5.5	65.4
220	CDL32-140-50HZ	20	58	2900	5.5	65.4
221	CDL32-150-2-50HZ	20	70	2900	7.5	65.4
222	CDL32-150-50HZ	20	82	2900	7.5	65.4
223	CDL32-160-2-50HZ	20	94	2900	11	65.4
224	CDL32-160-50HZ	20	106	2900	11	65.4
225	CDL42-10-1-50HZ	20	118	2900	11	65.4
226	CDL42-10-50HZ	20	130	2900	15	65.4
227	CDL42-20-2-50HZ	20	142	2900	15	65.4
228	CDL42-20-50HZ	20	154	2900	15	65.4
229	CDL42-30-2-50HZ	20	166	2900	15	65.4
230	CDL42-30-50HZ	20	178	2900	18.5	65.4
231	CDL42-40-2-50HZ	20	190	2900	18.5	65.4
232	CDL42-40-50HZ	20	202	2900	18.5	65.4
233	CDL42-50-2-50HZ	32	9	2900	1.5	68.2
234	CDL42-50-50HZ	32	13	2900	2.2	68.2
235	CDL42-60-2-50HZ	32	20	2900	3	68.2
236	CDL42-60-50HZ	32	27	2900	4	68.2
237	CDL42-70-2-50HZ	32	33	2900	5.5	68.2
238	CDL42-70-50HZ	32	40	2900	5.5	68.2
239	CDL42-80-2-50HZ	32	46	2900	7.5	68.2
240	CDL42-80-50HZ	32	53	2900	7.5	68.2
241	CDL42-90-2-50HZ	32	60	2900	11	68.2
242	CDL42-90-50HZ	32	67	2900	11	68.2
243	CDL42-100-2-50HZ	32	74	2900	11	68.2
244	CDL42-100-50HZ	32	81	2900	11	68.2
245	CDL42-110-2-50HZ	32	88	2900	15	68.2
246	CDL42-110-50HZ	32	95	2900	15	68.2
247	CDL42-120-2-50HZ	32	102	2900	15	68.2
248	CDL42-120-50HZ	32	109	2900	15	68.2
249	CDL42-130-2-50HZ	32	117	2900	18.5	68.2
250	CDL65-10-1-50HZ	32	124	2900	18.5	68.2
251	CDL65-10-50HZ	32	131	2900	18.5	68.2
252	CDL65-20-2-50HZ	32	138	2900	18.5	68.2
253	CDL65-20-1-50HZ	32	146	2900	22	68.2
254	CDL65-20-50HZ	32	153	2900	22	68.2
255	CDL65-30-2-50HZ	32	160	2900	22	68.2
256	CDL65-30-1-50HZ	32	167	2900	22	68.2
257	CDL65-30-50HZ	32	174	2900	30	68.2
258	CDL65-40-2-50HZ	32	181	2900	30	68.2
259	CDL65-40-1-50HZ	32	189	2900	30	68.2
260	CDL65-40-50HZ	32	196	2900	30	68.2
261	CDL65-50-2-50HZ	32	203	2900	30	68.2
262	CDL65-50-1-50HZ	32	210	2900	30	68.2
263	CDL65-50-50HZ	32	218	2900	30	68.2
264	CDL65-60-2-50HZ	32	225	2900	30	68.2
265	CDL65-60-1-50HZ	42	16	2900	3	69.8
266	CDL65-60-50HZ	42	20	2900	4	69.8
267	CDL65-70-2-50HZ	42	32	2900	5.5	69.8
268	CDL65-70-1-50HZ	42	41	2900	7.5	69.8
269	CDL65-70-50HZ	42	52	2900	11	69.8
270	CDL65-80-2-50HZ	42	61	2900	11	69.8
271	CDL65-80-1-50HZ	42	73	2900	15	69.8
272	CDL85-10-1-50HZ	42	81	2900	15	69.8
273	CDL85-10-50HZ	42	93	2900	18.5	69.8
274	CDL85-20-2-50HZ	42	101	2900	18.5	69.8
275	CDL85-20-50HZ	42	113	2900	22	69.8
276	CDL85-30-2-50HZ	42	122	2900	22	69.8
277	CDL85-30-50HZ	42	134	2900	30	69.8
278	CDL85-40-2-50HZ	42	142	2900	30	69.8
279	CDL85-40-50HZ	42	154	2900	30	69.8
280	CDL85-50-2-50HZ	42	162	2900	30	69.8
281	CDL85-50-50HZ	42	174	2900	30	69.8
282	CDL85-60-2-50HZ	42	183	2900	37	69.8
283	CDL85-60-50HZ	42	194	2900	37	69.8
284	CDL120-10-50HZ	42	203	2900	37	69.8
285	CDL120-20-2-50HZ	42	217	2900	45	69.8
286	CDL120-20-1-50HZ	42	225	2900	45	69.8
287	CDL120-20-50HZ	42	238	2900	45	69.8
288	CDL120-30-2-50HZ	42	247	2900	45	69.8
289	CDL120-30-1-50HZ	42	259	2900	45	69.8
290	CDL120-30-50HZ	65	13	2900	4	72.3
291	CDL120-40-2-50HZ	65	20	2900	5.5	72.3
292	CDL120-40-1-50HZ	65	26	2900	7.5	72.3
293	CDL120-40-50HZ	65	33	2900	11	72.3
294	CDL120-50-2-50HZ	65	40	2900	11	72.3
295	CDL120-50-1-50HZ	65	46	2900	15	72.3
296	CDL120-50-50HZ	65	53	2900	15	72.3
297	CDL120-60-2-50HZ	65	60	2900	18.5	72.3
298	CDL120-60-1-50HZ	65	66	2900	18.5	72.3
299	CDL120-60-50HZ	65	73	2900	22	72.3
300	CDL120-70-2-50HZ	65	80	2900	22	72.3
301	CDL120-70-1-50HZ	65	88	2900	30	72.3
302	CDL120-70-50HZ	65	95	2900	30	72.3
303	CDL150-10-1-50HZ	65	102	2900	30	72.3
304	CDL150-10-50HZ	65	110	2900	30	72.3
305	CDL150-20-2-50HZ	65	117	2900	37	72.3
306	CDL150-20-1-50HZ	65	124	2900	37	72.3
307	CDL150-20-50HZ	65	132	2900	37	72.3
308	CDL150-30-2-50HZ	65	139	2900	37	72.3
309	CDL150-30-1-50HZ	65	146	2900	45	72.3
310	CDL150-30-50HZ	65	154	2900	45	72.3
311	CDL150-40-2-50HZ	65	161	2900	45	72.3
312	CDL150-40-1-50HZ	85	14	2900	5.5	73.9
313	CDL150-40-50HZ	85	20	2900	7.5	73.9
314	CDL150-50-2-50HZ	85	30	2900	11	73.9
315	CDL150-50-1-50HZ	85	41	2900	15	73.9
316	CDL150-50-50HZ	85	52	2900	18.5	73.9
317	CDL150-60-2-50HZ	85	64	2900	22	73.9
318	CDL150-60-1-50HZ	85	75	2900	30	73.9
319	CDL150-60-50HZ	85	86	2900	30	73.9
320	CDL200-10-B-50HZ	85	98	2900	37	73.9
321	CDL200-10-A-50HZ	85	110	2900	37	73.9
322	CDL200-10-50HZ	85	122	2900	45	73.9
323	CDL200-20-2B-50HZ	85	134	2900	45	73.9
324	CDL200-20-2A-50HZ	120	18.5	2950	11	74.7
325	CDL200-20-A-50HZ	120	28.5	2950	15	74.7
326	CDL200-20-50HZ	120	34.5	2950	18.5	74.7
327	CDL200-30-2B-50HZ	120	40	2950	22	74.7
328	CDL200-30-A-B-50HZ	120	49	2950	30	74.7
329	CDL200-30-2A-50HZ	120	55.5	2950	30	74.7
330	CDL200-30-B-50HZ	120	61	2950	30	74.7
331	CDL200-30-A-50HZ	120	69	2950	37	74.7
332	CDL200-30-50HZ	120	76	2950	37	74.7
333	CDL200-40-2B-50HZ	120	81	2950	45	74.7
334	CDL200-40-2A-50HZ	120	90	2950	45	74.7
335	CDL200-40-A-50HZ	120	97	2950	45	74.7
336	CDL200-40-50HZ	120	101.5	2950	55	74.7
337	CDLF1-2+CDH1-36-50HZ	120	110	2950	55	74.7
338	CDLF1-3+CDH1-36-50HZ	120	118	2950	55	74.7
339	CDLF1-4+CDH1-36-50HZ	120	123	2950	75	74.7
340	CDLF1-5+CDH1-36-50HZ	120	130	2950	75	74.7
341	CDLF1-6+CDH1-36-50HZ	120	137.5	2950	75	74.7
342	CDLF1-7+CDH1-36-50HZ	120	145	2950	75	74.7
343	CDLF1-8+CDH1-36-50HZ	150	12.5	2950	11	75.8
344	CDLF1-9+CDH1-36-50HZ	150	18.5	2950	15	75.8
345	CDLF1-10+CDH1-36-50HZ	150	27.5	2950	18.5	75.8
346	CDLF1-11+CDH1-36-50HZ	150	35	2950	22	75.8
347	CDLF1-12+CDH1-36-50HZ	150	40	2950	30	75.8
348	CDLF1-13+CDH1-36-50HZ	150	49	2950	30	75.8
349	CDLF1-15+CDH1-36-50HZ	150	56	2950	37	75.8
350	CDLF1-17+CDH1-36-50HZ	150	63	2950	37	75.8
351	CDLF1-19+CDH1-36-50HZ	150	70.5	2950	45	75.8
352	CDLF1-21+CDH1-36-50HZ	150	77	2950	45	75.8
353	CDLF1-23+CDH1-36-50HZ	150	84	2950	55	75.8
354	CDLF1-25+CDH1-36-50HZ	150	92	2950	55	75.8
355	CDLF1-27+CDH1-36-50HZ	150	99	2950	75	75.8
356	CDLF1-30+CDH1-36-50HZ	150	106.5	2950	75	75.8
357	CDLF1-33+CDH1-36-50HZ	150	112	2950	75	75.8
358	CDLF1-36+CDH1-36-50HZ	150	120.5	2950	75	75.8
359	CDLF2-2+CDH2-26-50HZ	150	130	2950	75	75.8
360	CDLF2-3+CDH2-26-50HZ	200	20	2950	18.5	77.9
361	CDLF2-4+CDH2-26-50HZ	200	24	2950	22	77.9
362	CDLF2-5+CDH2-26-50HZ	200	34	2950	30	77.9
363	CDLF2-6+CDH2-26-50HZ	200	41	2950	37	77.9
364	CDLF2-7+CDH2-26-50HZ	200	49	2950	45	77.9
365	CDLF2-9+CDH2-26-50HZ	200	59	2950	55	77.9
366	CDLF2-11+CDH2-26-50HZ	200	69	2950	55	77.9
367	CDLF2-13+CDH2-26-50HZ	200	75	2950	75	77.9
368	CDLF2-15+CDH2-26-50HZ	200	79	2950	75	77.9
369	CDLF2-18+CDH2-26-50HZ	200	84	2950	75	77.9
370	CDLF2-22+CDH2-26-50HZ	200	89	2950	75	77.9
371	CDLF2-26+CDH2-26-50HZ	200	93	2950	75	77.9
372	CDLF3-2+CDH3-36-50HZ	200	103	2950	90	77.9
373	CDLF3-3+CDH3-36-50HZ	200	110	2950	90	77.9
374	CDLF3-4+CDH3-36-50HZ	200	118	2950	110	77.9
375	CDLF3-5+CDH3-36-50HZ	200	128	2950	110	77.9
376	CDLF3-6+CDH3-36-50HZ	200	138	2950	110	77.9
377	CDM3-3-50HZ	1	10.5	2900	0.37	41
378	CDM3-4-50HZ	1	16	2900	0.37	41
379	CDM3-5-50HZ	1	21.5	2900	0.37	41
380	CDM3-6-50HZ	1	27	2900	0.37	41
381	CDM3-7-50HZ	1	32.5	2900	0.37	41
382	CDM3-8-50HZ	1	39	2900	0.37	41
383	CDM3-9-50HZ	1	43.5	2900	0.55	41
384	CDM3-10-50HZ	1	49	2900	0.55	41
385	CDM3-11-50HZ	1	55	2900	0.55	41
386	CDM3-12-50HZ	1	61	2900	0.55	41
387	CDM3-13-50HZ	1	67	2900	0.75	41
388	CDM3-14-50HZ	1	73	2900	0.75	41
389	CDM3-15-50HZ	1	78	2900	0.75	41
390	CDM3-16-50HZ	1	84	2900	0.75	41
391	CDM3-17-50HZ	1	89	2900	1.1	41
392	CDM3-18-50HZ	1	95	2900	1.1	41
393	CDM3-19-50HZ	1	100	2900	1.1	41
394	CDM3-20-50HZ	1	106	2900	1.1	41
395	CDM3-21-50HZ	1	111	2900	1.1	41
396	CDM3-22-50HZ	1	117	2900	1.1	41
397	CDM3-23-50HZ	1	122	2900	1.1	41
398	CDM3-24-50HZ	1	128	2900	1.5	41
399	CDM3-25-50HZ	1	134	2900	1.5	41
400	CDM3-26-50HZ	1	139	2900	1.5	41
401	CDM3-27-50HZ	1	145	2900	1.5	41
402	CDM3-28-50HZ	1	150	2900	1.5	41
403	CDM3-29-50HZ	1	156	2900	1.5	41
404	CDM3-30-50HZ	1	161	2900	1.5	41
405	CDM3-31-50HZ	1	167	2900	1.5	41
406	CDM5-2-50HZ	1	175	2900	2.2	41
407	CDM5-3-50HZ	1	180	2900	2.2	41
408	CDM5-4-50HZ	1	186	2900	2.2	41
409	CDM5-5-50HZ	1	192	2900	2.2	41
410	CDM5-6-50HZ	1	197	2900	2.2	41
411	CDM5-7-50HZ	1	203	2900	2.2	41
412	CDM5-8-50HZ	1	209	2900	2.2	41
413	CDM5-9-50HZ	1	215	2900	2.2	41
414	CDM5-10-50HZ	1	220	2900	2.2	41
415	CDM5-11-50HZ	1	226	2900	2.2	41
416	CDM5-12-50HZ	3	11	2900	0.37	58
417	CDM5-13-50HZ	3	17	2900	0.37	58
418	CDM5-14-50HZ	3	23	2900	0.37	58
419	CDM5-15-50HZ	3	29	2900	0.55	58
420	CDM5-16-50HZ	3	35	2900	0.55	58
421	CDM5-17-50HZ	3	41	2900	0.75	58
422	CDM5-18-50HZ	3	47	2900	0.75	58
423	CDM5-19-50HZ	3	53	2900	1.1	58
424	CDM5-20-50HZ	3	59	2900	1.1	58
425	CDM5-21-50HZ	3	65	2900	1.1	58
426	CDM5-22-50HZ	3	71	2900	1.1	58
427	CDM5-23-50HZ	3	77	2900	1.5	58
428	CDM5-24-50HZ	3	83	2900	1.5	58
429	CDM5-25-50HZ	3	90	2900	1.5	58
430	CDM5-26-50HZ	3	96	2900	1.5	58
431	CDM5-27-50HZ	3	102	2900	2.2	58
432	CDM5-28-50HZ	3	108	2900	2.2	58
433	CDM5-29-50HZ	3	114	2900	2.2	58
434	CDM5-30-50HZ	3	120	2900	2.2	58
435	CDM5-31-50HZ	3	126	2900	2.2	58
436	CDM5-32-50HZ	3	132	2900	2.2	58
437	CDM5-33-50HZ	3	138	2900	2.2	58
438	CDM10-1-50HZ	3	144	2900	2.2	58
439	CDM10-2-50HZ	3	150	2900	3	58
440	CDM10-3-50HZ	3	156	2900	3	58
441	CDM10-4-50HZ	3	162	2900	3	58
442	CDM10-5-50HZ	3	168	2900	3	58
443	CDM10-6-50HZ	3	175	2900	3	58
444	CDM10-7-50HZ	3	181	2900	3	58
445	CDM10-8-50HZ	3	187	2900	3	58
446	CDM10-9-50HZ	5	11.5	2900	0.37	69
447	CDM10-10-50HZ	5	17.5	2900	0.55	69
448	CDM10-11-50HZ	5	24	2900	0.55	69
449	CDM10-12-50HZ	5	30	2900	0.75	69
450	CDM10-13-50HZ	5	37	2900	1.1	69
451	CDM10-14-50HZ	5	42.5	2900	1.1	69
452	CDM10-15-50HZ	5	49	2900	1.1	69
453	CDM10-16-50HZ	5	55	2900	1.5	69
454	CDM10-17-50HZ	5	62	2900	1.5	69
455	CDM10-18-50HZ	5	68	2900	1.5	69
456	CDM10-19-50HZ	5	74.5	2900	2.2	69
457	CDM10-20-50HZ	5	80	2900	2.2	69
458	CDM10-21-50HZ	5	87	2900	2.2	69
459	CDM10-22-50HZ	5	93	2900	2.2	69
460	CDM15-1-50HZ	5	99	2900	2.2	69
461	CDM15-2-50HZ	5	105	2900	3	69
462	CDM15-3-50HZ	5	111	2900	3	69
463	CDM15-4-50HZ	5	118	2900	3	69
464	CDM15-5-50HZ	5	124	2900	3	69
465	CDM15-6-50HZ	5	130	2900	3	69
466	CDM15-7-50HZ	5	136	2900	4	69
467	CDM15-8-50HZ	5	142	2900	4	69
468	CDM15-9-50HZ	5	149	2900	4	69
469	CDM15-10-50HZ	5	155	2900	4	69
470	CDM15-11-50HZ	5	161	2900	4	69
471	CDM15-12-50HZ	5	168	2900	4	69
472	CDM15-13-50HZ	5	174	2900	4	69
473	CDM15-14-50HZ	5	180	2900	5.5	69
474	CDM15-15-50HZ	5	186	2900	5.5	69
475	CDM15-16-50HZ	5	193	2900	5.5	69
476	CDM15-17-50HZ	5	200	2900	5.5	69
477	CDM15-18-50HZ	5	206	2900	5.5	69
478	CDM20-1-50HZ	10	8	2900	0.75	72
479	CDM20-2-50HZ	10	16.5	2900	0.75	72
480	CDM20-3-50HZ	10	25.5	2900	1.1	72
481	CDM20-4-50HZ	10	34	2900	1.5	72
482	CDM20-5-50HZ	10	43	2900	2.2	72
483	CDM20-6-50HZ	10	52	2900	2.2	72
484	CDM20-7-50HZ	10	62	2900	3	72
485	CDM20-8-50HZ	10	71	2900	3	72
486	CDM20-9-50HZ	10	80	2900	4	72
487	CDM20-10-50HZ	10	89	2900	4	72
488	CDM20-11-50HZ	10	98	2900	4	72
489	CDM20-12-50HZ	10	107	2900	4.5	72
490	CDM20-13-50HZ	10	116	2900	5.5	72
491	CDM20-14-50HZ	10	125	2900	5.5	72
492	CDM20-15-50HZ	10	134	2900	5.5	72
493	CDM20-16-50HZ	10	144	2900	7.5	72
494	CDM20-17-50HZ	10	153	2900	7.5	72
495	CDM32-1-1-50HZ	10	163	2900	7.5	72
496	CDM32-1-50HZ	10	172	2900	7.5	72
497	CDM32-2-2-50HZ	10	181	2900	7.5	72
498	CDM32-2-50HZ	10	191	2900	7.5	72
499	CDM32-3-2-50HZ	10	201	2900	11	72
500	CDM32-3-50HZ	15	11	2900	1.1	71
501	CDM32-4-2-50HZ	15	22.5	2900	2.2	71
502	CDM32-4-50HZ	15	34.5	2900	3	71
503	CDM32-5-2-50HZ	15	47	2900	4	71
504	CDM32-5-50HZ	15	58	2900	4	71
505	CDM32-6-2-50HZ	15	69	2900	5.5	71
506	CDM32-6-50HZ	15	81	2900	5.5	71
507	CDM32-7-2-50HZ	15	93	2900	7.5	71
508	CDM32-7-50HZ	15	106	2900	7.5	71
509	CDM32-8-2-50HZ	15	118	2900	11	71
510	CDM32-8-50HZ	15	130	2900	11	71
511	CDM32-9-2-50HZ	15	142	2900	11	71
512	CDM32-9-50HZ	15	152	2900	11	71
513	CDM32-10-2-50HZ	15	165	2900	11	71
514	CDM32-10-50HZ	15	178	2900	15	71
515	CDM32-11-2-50HZ	15	189	2900	15	71
516	CDM32-11-50HZ	15	201	2900	15	71
517	CDM32-12-2-50HZ	15	213	2900	15	71
518	CDM32-12-50HZ	20	10.5	2900	1.1	72
519	CDM32-13-2-50HZ	20	23	2900	2.2	72
520	CDM32-13-50HZ	20	35	2900	4	72
521	CDM32-14-2-50HZ	20	47	2900	5.5	72
522	CDM32-14-50HZ	20	58	2900	5.5	72
523	CDM32-15-2-50HZ	20	70	2900	7.5	72
524	CDM32-15-50HZ	20	82	2900	7.5	72
525	CDM32-16-2-50HZ	20	95	2900	11	72
526	CDM32-16-50HZ	20	107	2900	11	72
527	CDM42-1-1-50HZ	20	119	2900	11	72
528	CDM42-1-50HZ	20	131	2900	15	72
529	CDM42-2-2-50HZ	20	143	2900	15	72
530	CDM42-2-50HZ	20	155	2900	15	72
531	CDM42-3-2-50HZ	20	168	2900	15	72
532	CDM42-3-50HZ	20	180	2900	18.5	72
533	CDM42-4-2-50HZ	20	193	2900	18.5	72
534	CDM42-4-50HZ	20	205	2900	18.5	72
535	CDM42-5-2-50HZ	32	9	2900	1.5	68.2
536	CDM42-5-50HZ	32	13	2900	2.2	68.2
537	CDM42-6-2-50HZ	32	20	2900	3	68.2
538	CDM42-6-50HZ	32	27	2900	4	68.2
539	CDM42-7-2-50HZ	32	33	2900	5.5	68.2
540	CDM42-7-50HZ	32	40	2900	5.5	68.2
541	CDM42-8-2-50HZ	32	46	2900	7.5	68.2
542	CDM42-8-50HZ	32	53	2900	7.5	68.2
543	CDM42-9-2-50HZ	32	60	2900	11	68.2
544	CDM42-9-50HZ	32	67	2900	11	68.2
545	CDM42-10-2-50HZ	32	74	2900	11	68.2
546	CDM42-10-50HZ	32	81	2900	11	68.2
547	CDM42-11-2-50HZ	32	88	2900	15	68.2
548	CDM42-11-50HZ	32	95	2900	15	68.2
549	CDM42-12-2-50HZ	32	102	2900	15	68.2
550	CDM42-12-50HZ	32	109	2900	15	68.2
551	CDM42-13-2-50HZ	32	117	2900	18.5	68.2
552	CDM65-1-1-50HZ	32	124	2900	18.5	68.2
553	CDM65-1-50HZ	32	131	2900	18.5	68.2
554	CDM65-2-2-50HZ	32	138	2900	18.5	68.2
555	CDM65-2-1-50HZ	32	146	2900	22	68.2
556	CDM65-2-50HZ	32	153	2900	22	68.2
557	CDM65-3-2-50HZ	32	160	2900	22	68.2
558	CDM65-3-1-50HZ	32	167	2900	22	68.2
559	CDM65-3-50HZ	32	174	2900	30	68.2
560	CDM65-4-2-50HZ	32	181	2900	30	68.2
561	CDM65-4-1-50HZ	32	189	2900	30	68.2
562	CDM65-4-50HZ	32	196	2900	30	68.2
563	CDM65-5-2-50HZ	32	203	2900	30	68.2
564	CDM65-5-1-50HZ	32	210	2900	30	68.2
565	CDM65-5-50HZ	32	218	2900	30	68.2
566	CDM65-6-2-50HZ	32	225	2900	30	68.2
567	CDM65-6-1-50HZ	42	16	2900	3	69.8
568	CDM65-6-50HZ	42	20	2900	4	69.8
569	CDM65-7-2-50HZ	42	32	2900	5.5	69.8
570	CDM65-7-1-50HZ	42	41	2900	7.5	69.8
571	CDM65-7-50HZ	42	52	2900	11	69.8
572	CDM65-8-2-50HZ	42	61	2900	11	69.8
573	CDM65-8-1-50HZ	42	73	2900	15	69.8
574	CDM85-1-1-50HZ	42	81	2900	15	69.8
575	CDM85-1-50HZ	42	93	2900	18.5	69.8
576	CDM85-2-2-50HZ	42	101	2900	18.5	69.8
577	CDM85-2-50HZ	42	113	2900	22	69.8
578	CDM85-3-2-50HZ	42	122	2900	22	69.8
579	CDM85-3-50HZ	42	134	2900	30	69.8
580	CDM85-4-2-50HZ	42	142	2900	30	69.8
581	CDM85-4-50HZ	42	154	2900	30	69.8
582	CDM85-5-2-50HZ	42	162	2900	30	69.8
583	CDM85-5-50HZ	42	174	2900	30	69.8
584	CDM85-6-2-50HZ	42	183	2900	37	69.8
585	CDM85-6-50HZ	42	194	2900	37	69.8
586	CDM120-1-50HZ	42	203	2900	37	69.8
587	CDM120-2-2-50HZ	42	217	2900	45	69.8
588	CDM120-2-1-50HZ	42	225	2900	45	69.8
589	CDM120-2-50HZ	42	238	2900	45	69.8
590	CDM120-3-2-50HZ	42	247	2900	45	69.8
591	CDM120-3-1-50HZ	42	259	2900	45	69.8
592	CDM120-3-50HZ	65	13	2900	4	72.3
593	CDM120-4-2-50HZ	65	20	2900	5.5	72.3
594	CDM120-4-1-50HZ	65	26	2900	7.5	72.3
595	CDM120-4-50HZ	65	33	2900	11	72.3
596	CDM120-5-2-50HZ	65	40	2900	11	72.3
597	CDM120-5-1-50HZ	65	46	2900	15	72.3
598	CDM120-5-50HZ	65	53	2900	15	72.3
599	CDM120-6-2-50HZ	65	60	2900	18.5	72.3
600	CDM120-6-1-50HZ	65	66	2900	18.5	72.3
601	CDM120-6-50HZ	65	73	2900	22	72.3
602	CDM120-7-2-50HZ	65	80	2900	22	72.3
603	CDM120-7-1-50HZ	65	88	2900	30	72.3
604	CDM120-7-50HZ	65	95	2900	30	72.3
605	CDM150-1-1-50HZ	65	102	2900	30	72.3
606	CDM150-1-50HZ	65	110	2900	30	72.3
607	CDM150-2-2-50HZ	65	117	2900	37	72.3
608	CDM150-2-1-50HZ	65	124	2900	37	72.3
609	CDM150-2-50HZ	65	132	2900	37	72.3
610	CDM150-3-2-50HZ	65	139	2900	37	72.3
611	CDM150-3-1-50HZ	65	146	2900	45	72.3
612	CDM150-3-50HZ	65	154	2900	45	72.3
613	CDM150-4-2-50HZ	65	161	2900	45	72.3
614	CDM150-4-1-50HZ	85	14	2900	5.5	73.9
615	CDM150-4-50HZ	85	20	2900	7.5	73.9
616	CDM150-5-2-50HZ	85	30	2900	11	73.9
617	CDM150-5-1-50HZ	85	41	2900	15	73.9
618	CDM150-5-50HZ	85	52	2900	18.5	73.9
619	CDM150-6-2-50HZ	85	64	2900	22	73.9
620	CDM150-6-1-50HZ	85	75	2900	30	73.9
621	CDM150-6-50HZ	85	86	2900	30	73.9
622	CDM200-1-B-50HZ	85	98	2900	37	73.9
623	CDM200-1-A-50HZ	85	110	2900	37	73.9
624	CDM200-1-50HZ	85	122	2900	45	73.9
625	CDM200-2-2B-50HZ	85	134	2900	45	73.9
626	CDM200-2-2A-50HZ	120	18.5	2950	11	74.7
627	CDM200-2-A-50HZ	120	28.5	2950	15	74.7
628	CDM200-2-50HZ	120	34.5	2950	18.5	74.7
629	CDM200-3-2B-50HZ	120	40	2950	22	74.7
630	CDM200-3-A-B-50HZ	120	49	2950	30	74.7
631	CDM200-3-2A-50HZ	120	55.5	2950	30	74.7
632	CDM200-3-B-50HZ	120	61	2950	30	74.7
633	CDM200-3-A-50HZ	120	69	2950	37	74.7
634	CDM200-3-50HZ	120	76	2950	37	74.7
635	CDM200-4-2B-50HZ	120	81	2950	45	74.7
636	CDM200-4-2A-50HZ	120	90	2950	45	74.7
637	CDM200-4-A-50HZ	120	97	2950	45	74.7
638	CDM200-4-50HZ	120	101.5	2950	55	74.7
639	CDMFE1-23	120	110	2950	55	74.7
640	CDMFE1-25	120	118	2950	55	74.7
641	CDMFE1-27	120	123	2950	75	74.7
642	CDMFE1-30	120	130	2950	75	74.7
643	CDMFE1-32	120	137.5	2950	75	74.7
644	CDMFE1-33	120	145	2950	75	74.7
645	CDMFE1-34	150	12.5	2950	11	75.8
646	CDMFE1-36	150	18.5	2950	15	75.8
647	CDMFE1-38	150	27.5	2950	18.5	75.8
648	CDMFE1-40	150	35	2950	22	75.8
649	CDMFE3-13	150	40	2950	30	75.8
650	CDMFE3-14	150	49	2950	30	75.8
651	CDMFE3-15	150	56	2950	37	75.8
652	CDMFE3-16	150	63	2950	37	75.8
653	CDMFE3-18	150	70.5	2950	45	75.8
654	CDMFE3-19	150	77	2950	45	75.8
655	CDMFE3-20	150	84	2950	55	75.8
656	CDMFE3-21	150	92	2950	55	75.8
657	CDMFE3-22	150	99	2950	75	75.8
658	CDMFE3-23	150	106.5	2950	75	75.8
659	CDMFE3-24	150	112	2950	75	75.8
660	CDMFE3-25	150	120.5	2950	75	75.8
661	CDMFE3-27	150	130	2950	75	75.8
662	CDMFE3-28	200	20	2950	18.5	77.9
663	CDMFE3-29	200	24	2950	22	77.9
664	CDMFE3-31	200	34	2950	30	77.9
665	CDMFE5-9	200	41	2950	37	77.9
666	CDMFE5-10	200	49	2950	45	77.9
667	CDMFE5-11	200	59	2950	55	77.9
668	CDMFE5-12	200	69	2950	55	77.9
669	CDMFE5-13	200	75	2950	75	77.9
670	CDMFE5-14	200	79	2950	75	77.9
671	CDMFE5-15	200	84	2950	75	77.9
672	CDMFE5-16	200	89	2950	75	77.9
673	CDMFE5-17	200	93	2950	75	77.9
674	CDMFE5-18	200	103	2950	90	77.9
675	CDMFE5-20	200	110	2950	90	77.9
676	CDMFE5-21	200	118	2950	110	77.9
677	CDMFE5-22	200	128	2950	110	77.9

补充说明

暂无勾选的产品信息

联系信息

产品：*

您的单位：*

您的姓名：*

联系电话：*

常用邮箱：

国家/地区*

详细地址：

补充说明：

验证码：*

还有疑问？

我们的专业团队随时准备为您提供帮助，立即联系我们获取专属解决方案

立即咨询 021-57796293
